Microsoft Entra ID

Set up a SAML 2.0 enterprise application in Microsoft Entra ID (formerly Azure Active Directory) and connect it to OrbitID. You need an Entra ID administrator account.

Step 1: Create application

From your Azure admin console, click Enterprise applications from the left navigation menu.

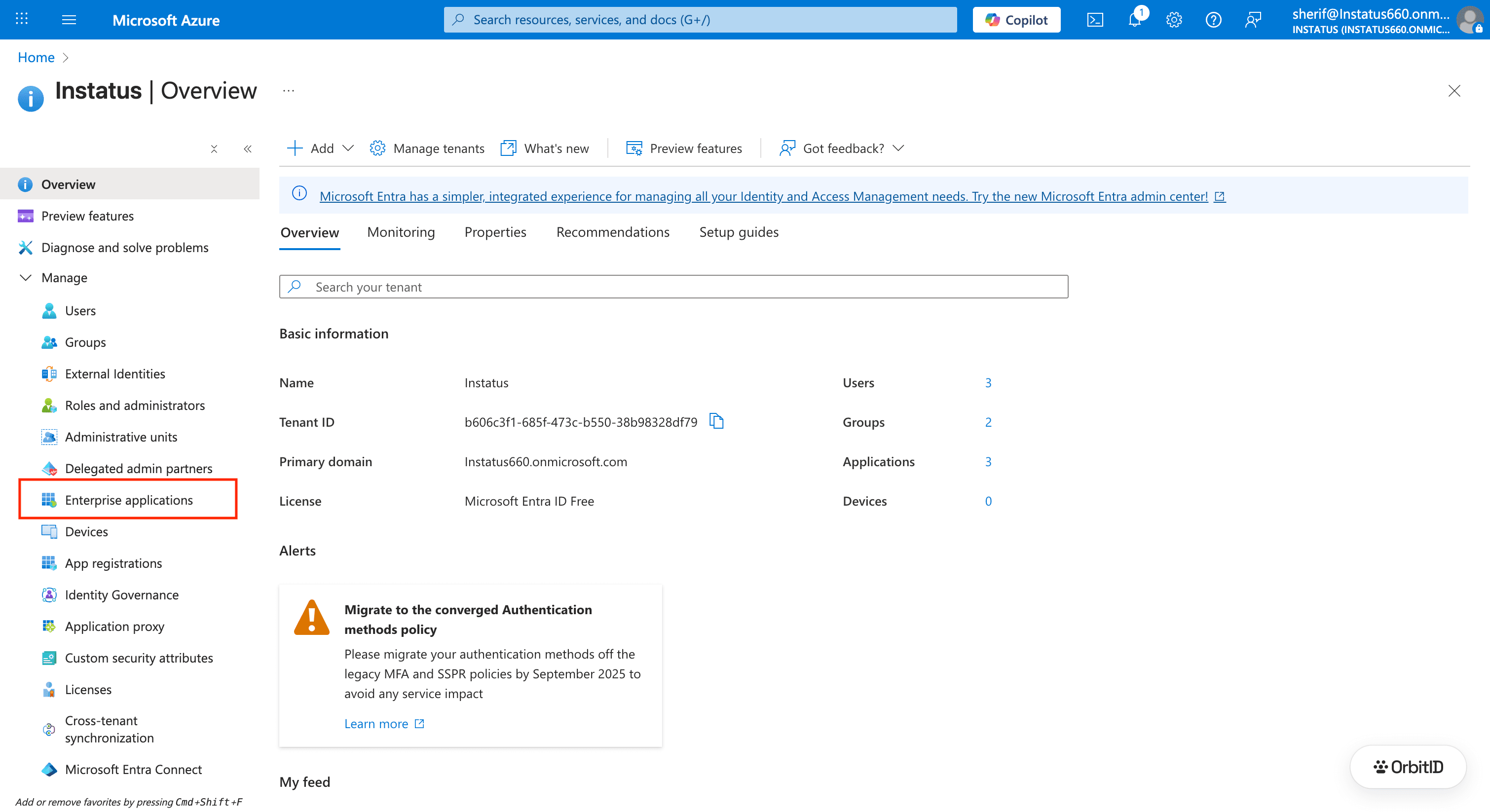

Entra ID overview with Enterprise applications highlighted

If your application is already created, choose it from the list and move to the next step.

If you haven't created a SAML application, click New application from the top to create a new application.

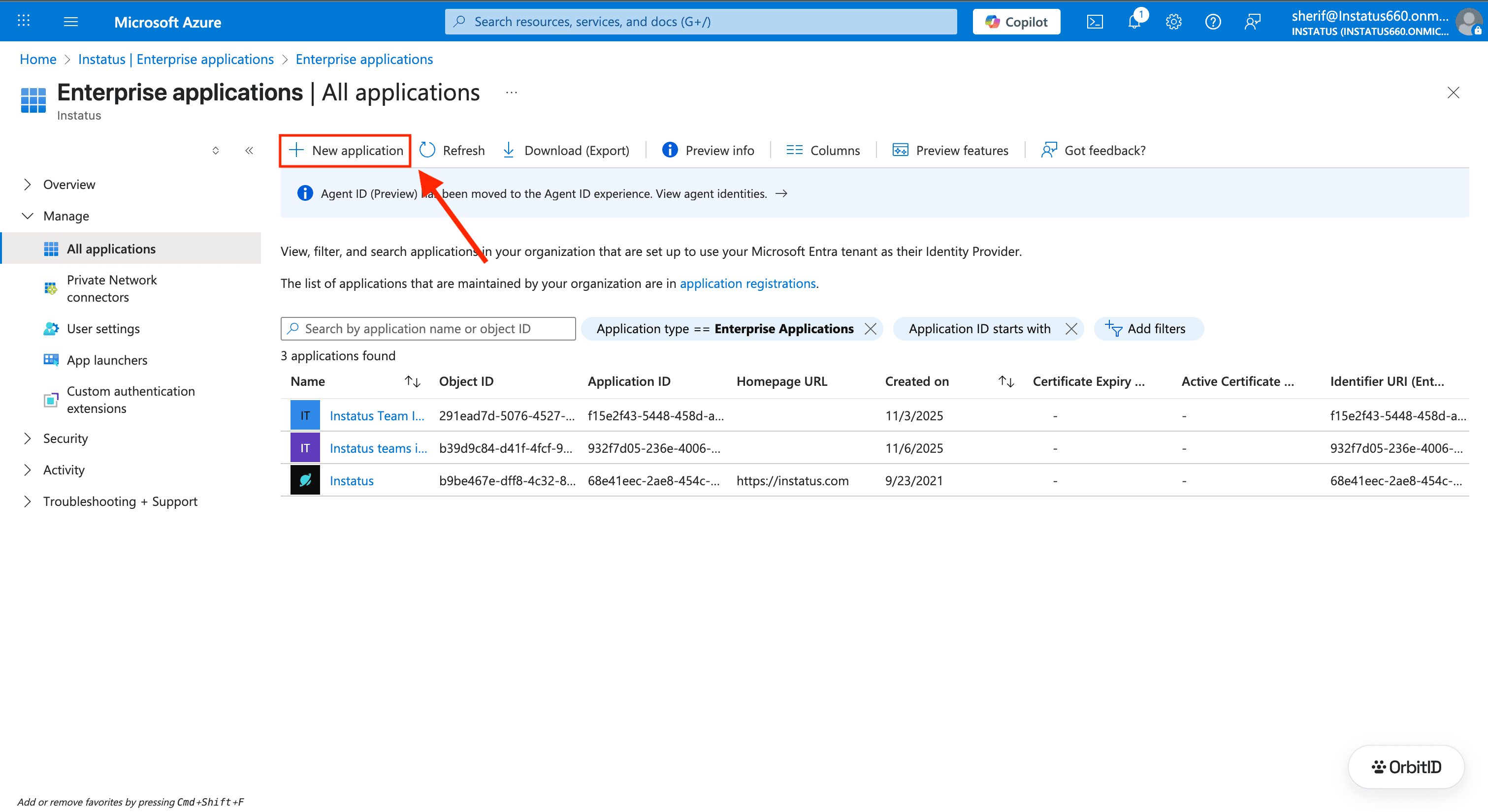

Enterprise applications list with New application highlighted

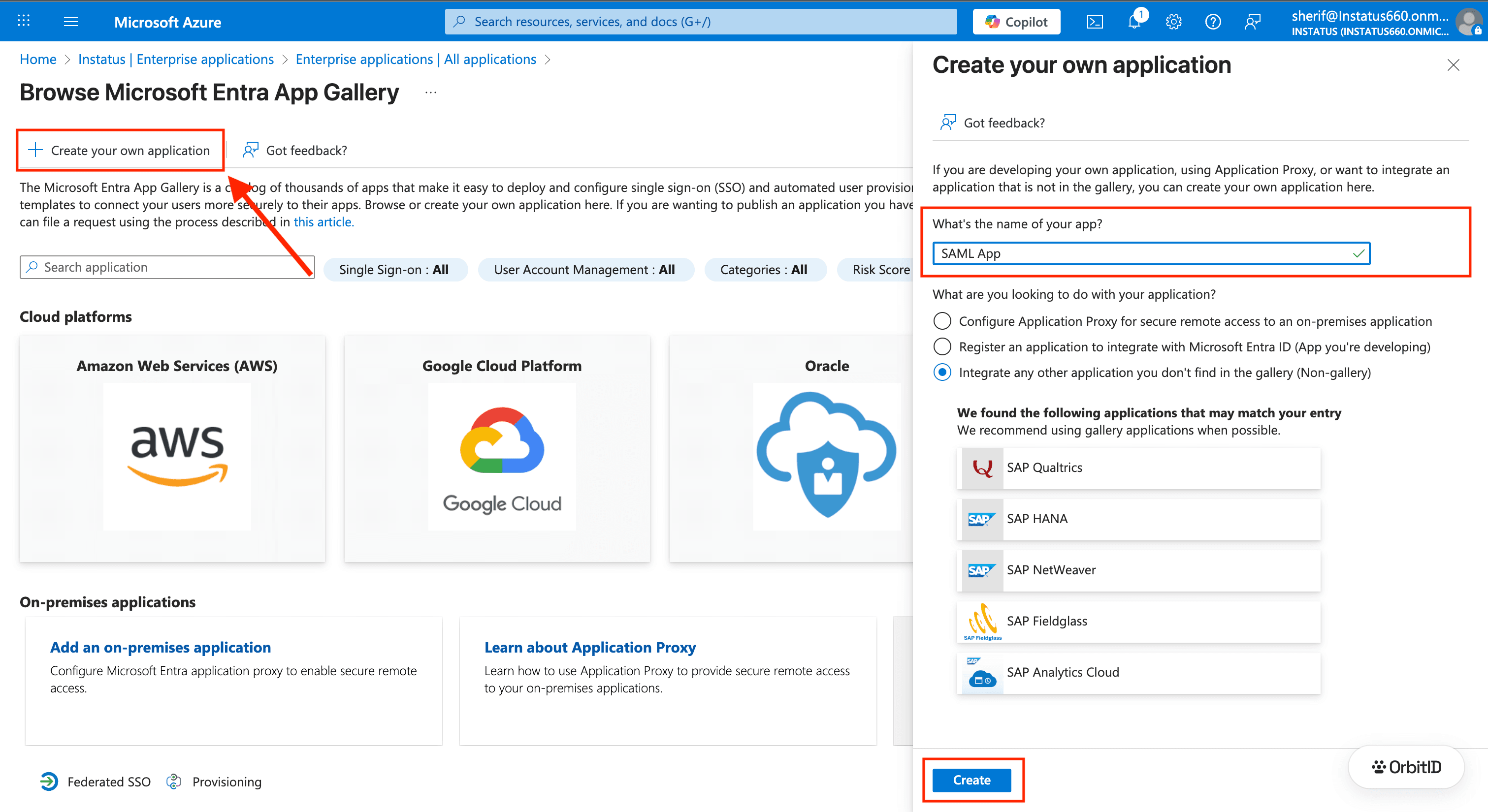

From the next screen, click Create your own application.

Give your application a Name and click Create.

Step 2: Configure application

Select Single Sign On from the Manage section of your app and then SAML.

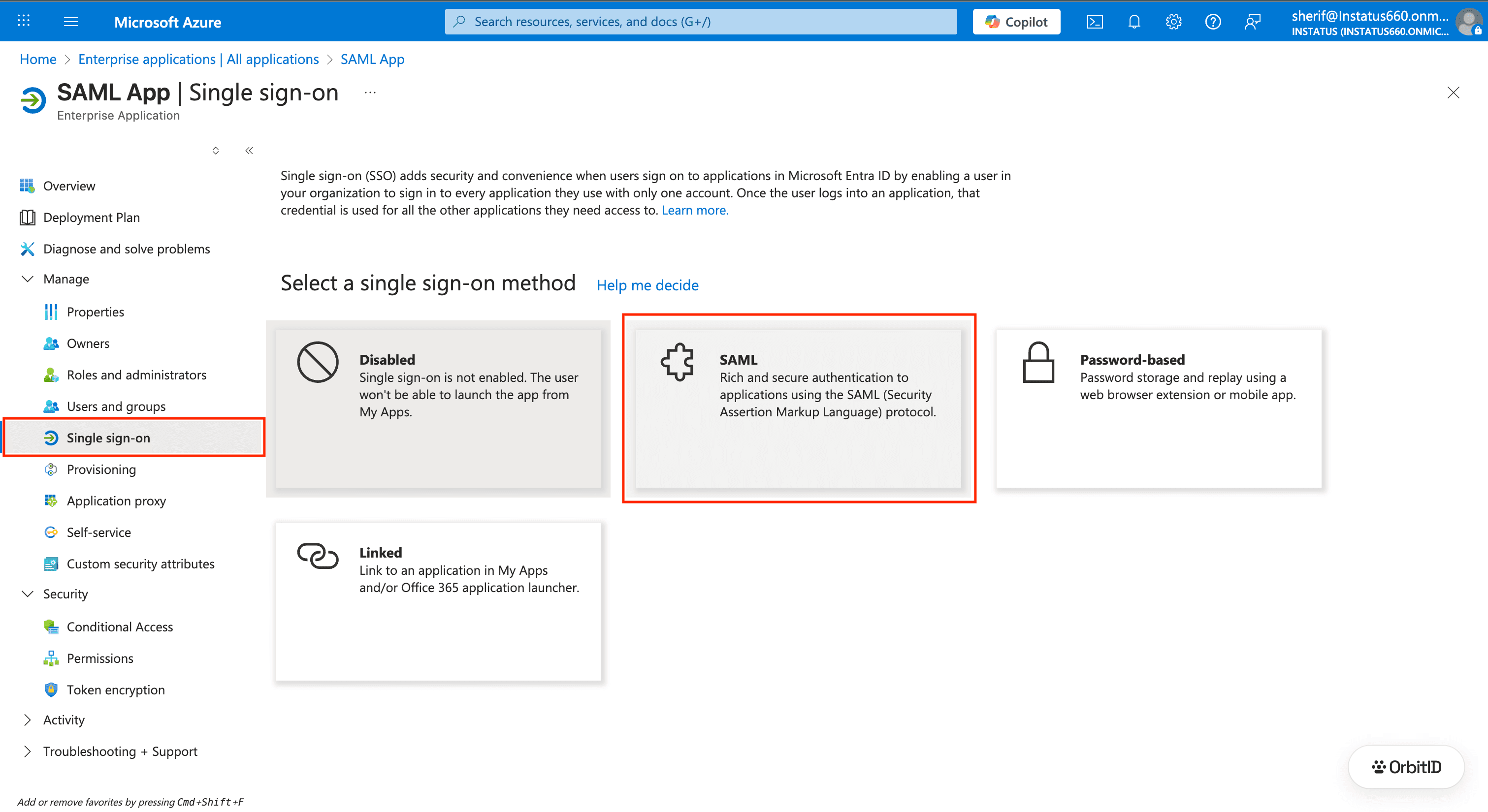

Single sign-on method selection with SAML highlighted

Click Edit on the Basic SAML Configuration section.

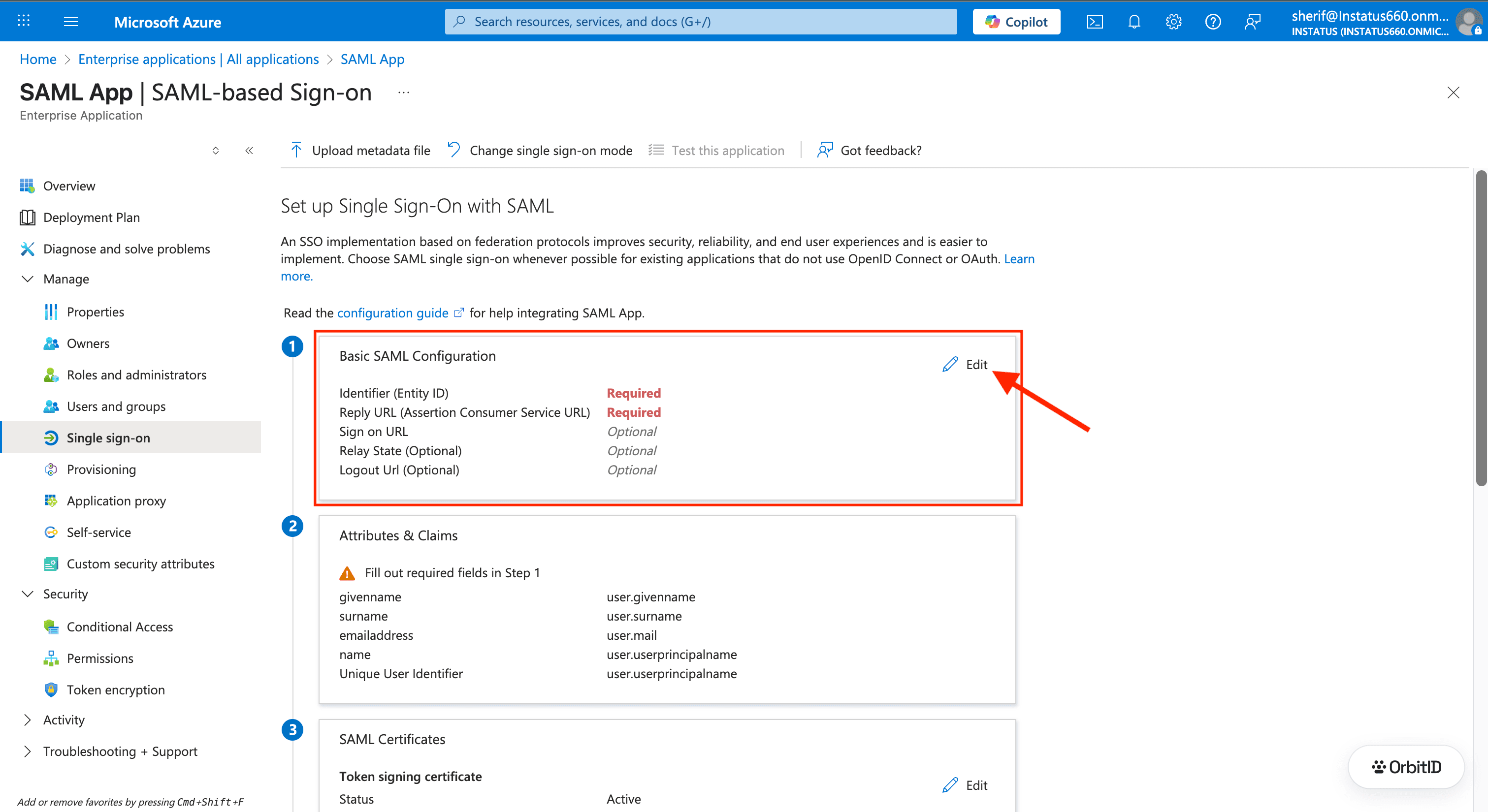

SAML-based sign-on page with the Basic SAML Configuration edit button

Enter the following values in the Basic SAML Configuration section on the next screen:

Reply URL (Assertion Consumer Service URL): https://app.orbitid.com/api/oauth/saml; The ACS URL shown in your OrbitID Configuration page. Sandbox uses https://app.orbitid.com/api/oauth/sandbox/saml.
Identifier (Entity ID): https://saml.orbitid.com; The SP Entity ID shown in your OrbitID Configuration page. Sandbox uses https://saml.orbitid.com/sandbox.

Click Save to save your changes.

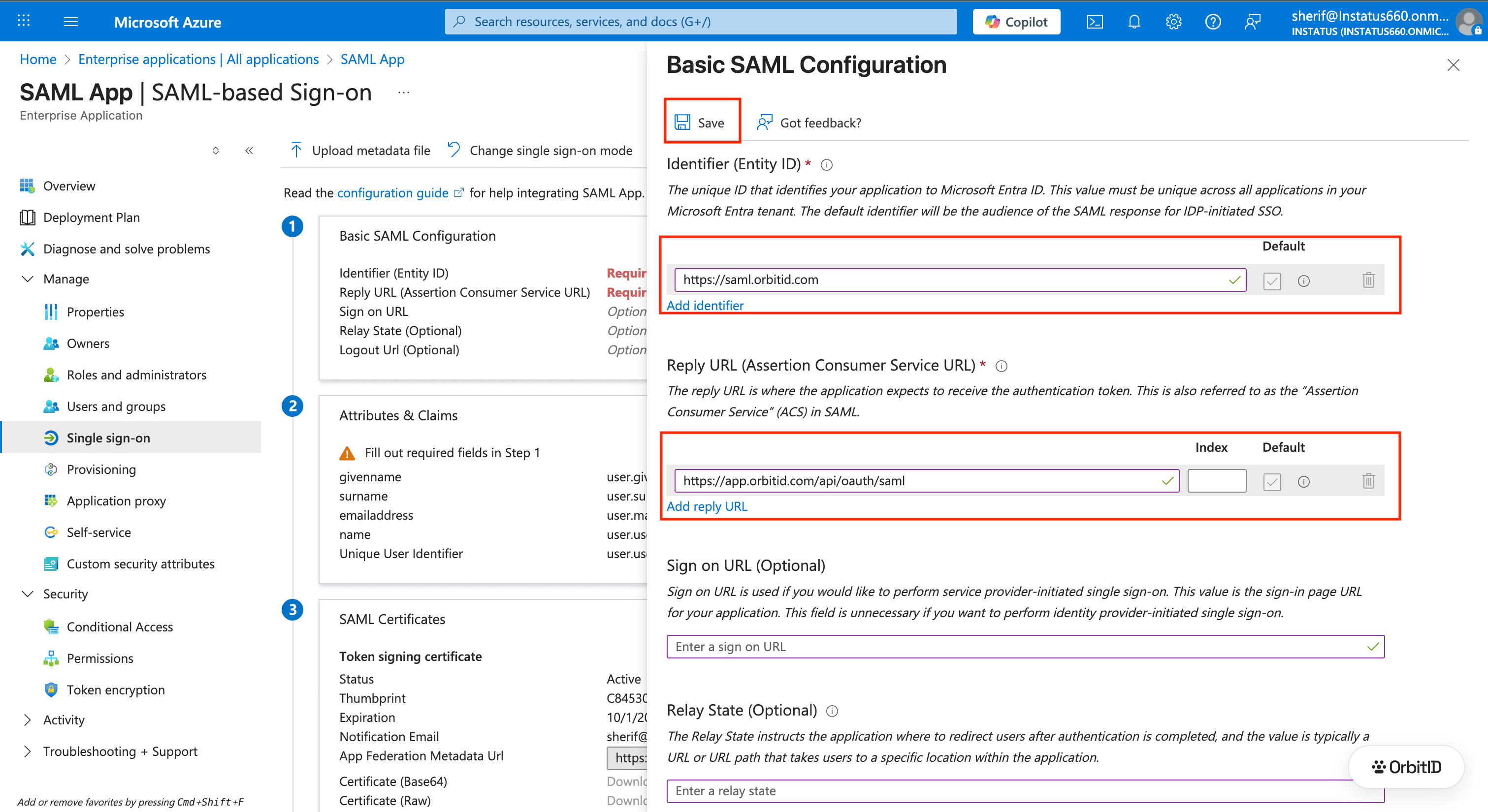

Basic SAML Configuration form with the identifier and reply URL

Step 3: Attribute mapping

Click Edit on the Attributes & Claims section.

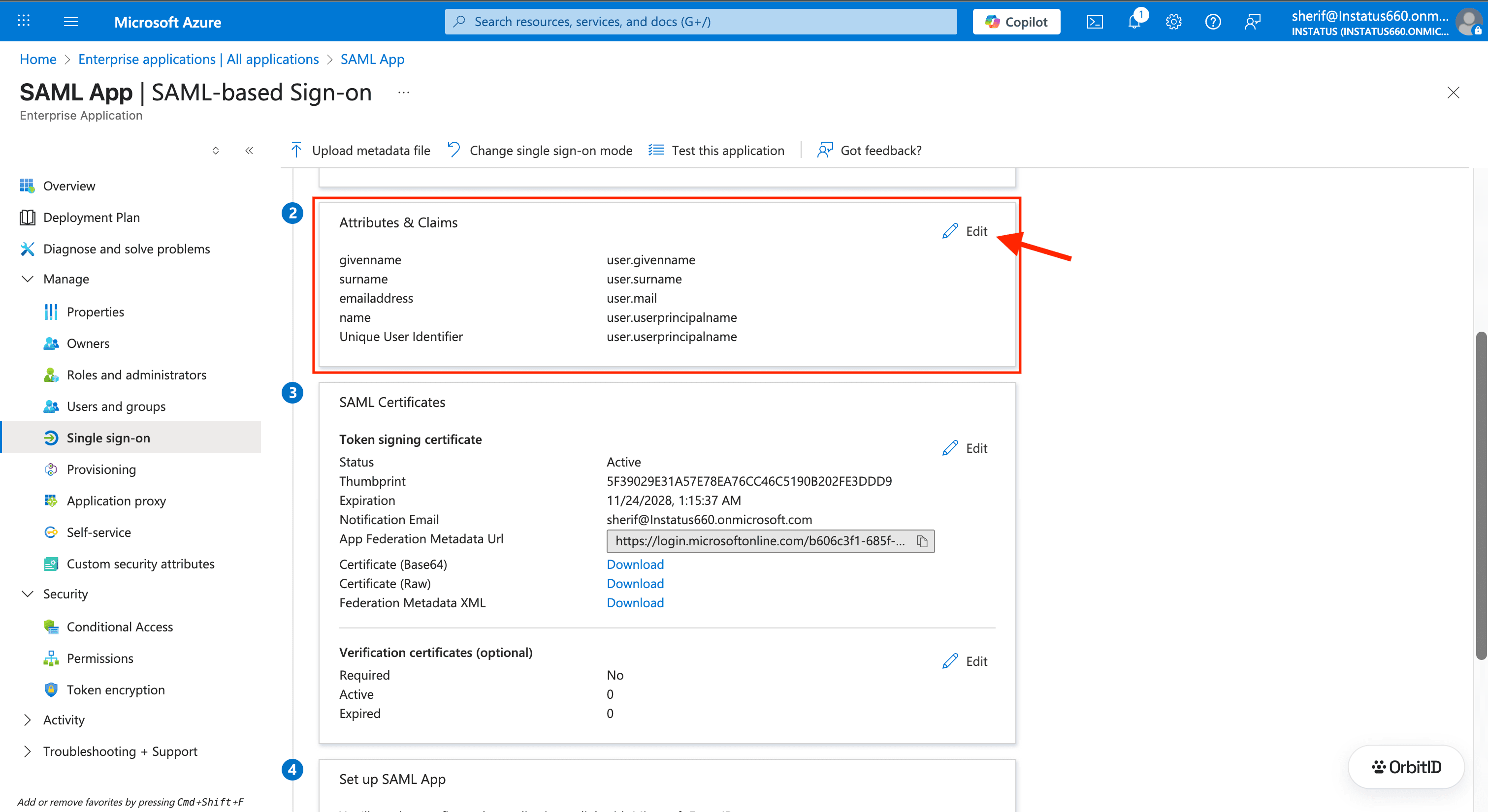

Attributes & Claims section with the edit button

You have to configure the following attributes under the Attributes & Claims section:

Name	Value
`http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress`	user.mail
`http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname`	user.givenname
`http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name`	user.userprincipalname
`http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname`	user.surname

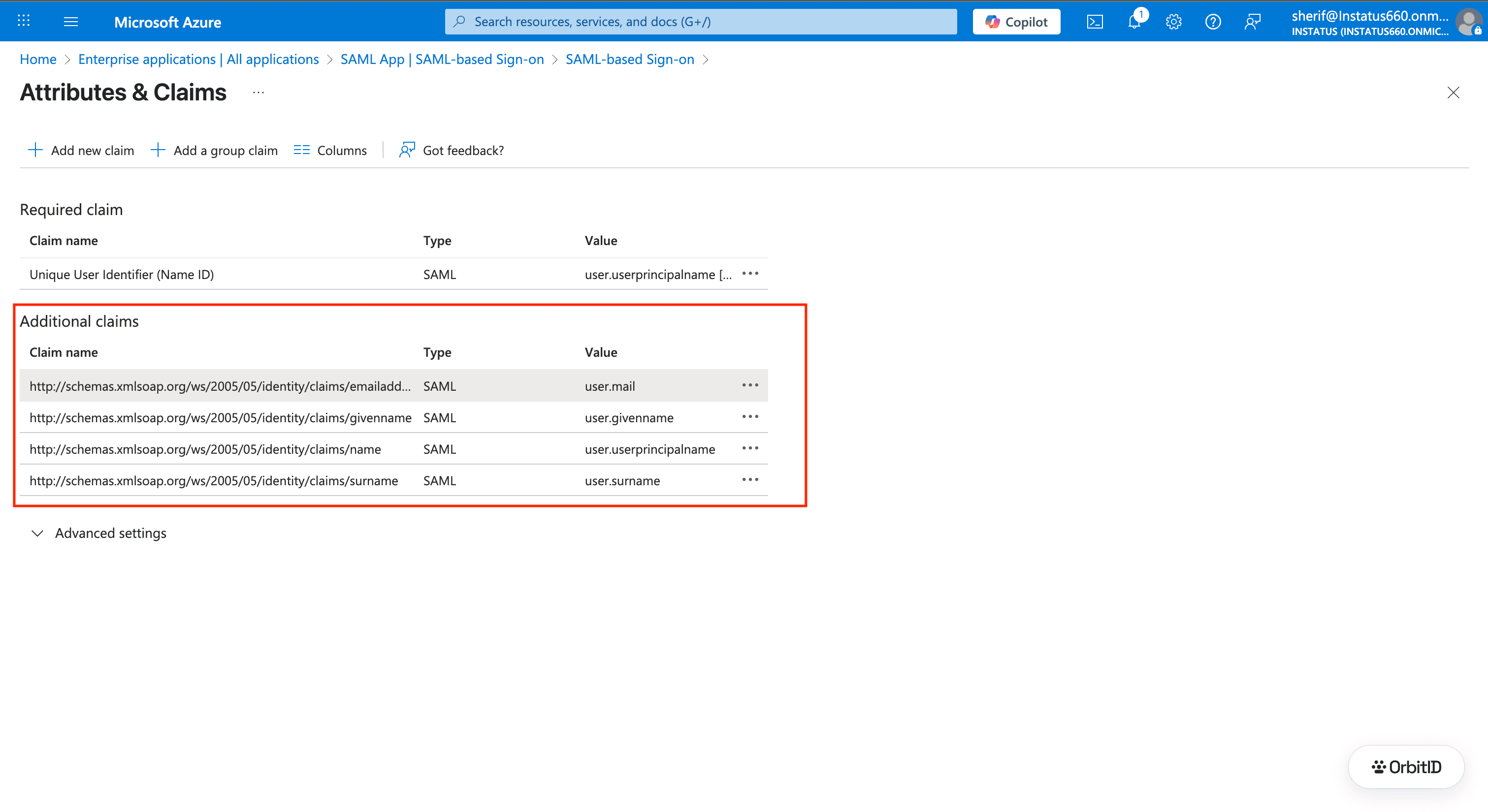

Attributes & Claims list with the email, given name, name and surname claims

Step 4: Download the IdP metadata

Go to the SAML Signing Certificate section and download the Federation Metadata XML, or copy the App Federation Metadata Url.

SAML Signing Certificate section with the Federation Metadata XML download

Finish in OrbitID

Finish in OrbitID: paste the IdP metadata URL or XML into the connection form (or the Admin Portal link). In the dashboard, open the environment, go to Connections, click New connection, choose SAML and paste the metadata URL or the XML you downloaded. If your customer's admin is following an Admin Portal link, they paste it into the final step of the portal instead.

You can also create the connection with the API: POST /api/v1/sso as described in the quickstart.
