Single sign-on · Setup guides

Okta

Set up a SAML 2.0 application in Okta and connect it to OrbitID. You need admin access to the Okta org.

Step 1: Create application

From your Okta account, click Applications from the left navigation menu.

If your application is already created, choose it from the list and move to the next step.

If you haven't created a SAML application, click the Create App Integration button to create a new application.

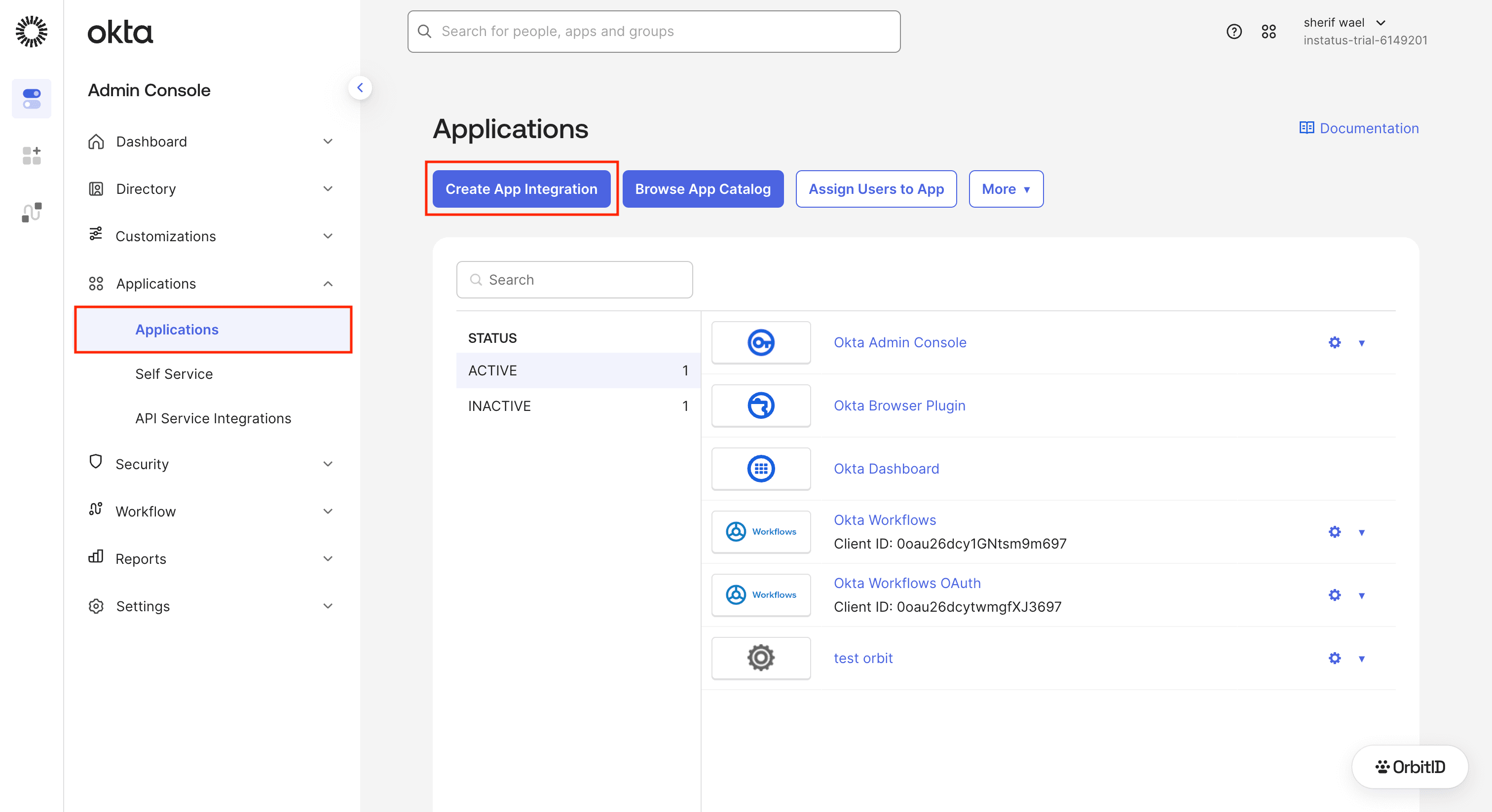

Okta applications page with Create App Integration highlighted

Choose SAML 2.0 from the next screen and click Next.

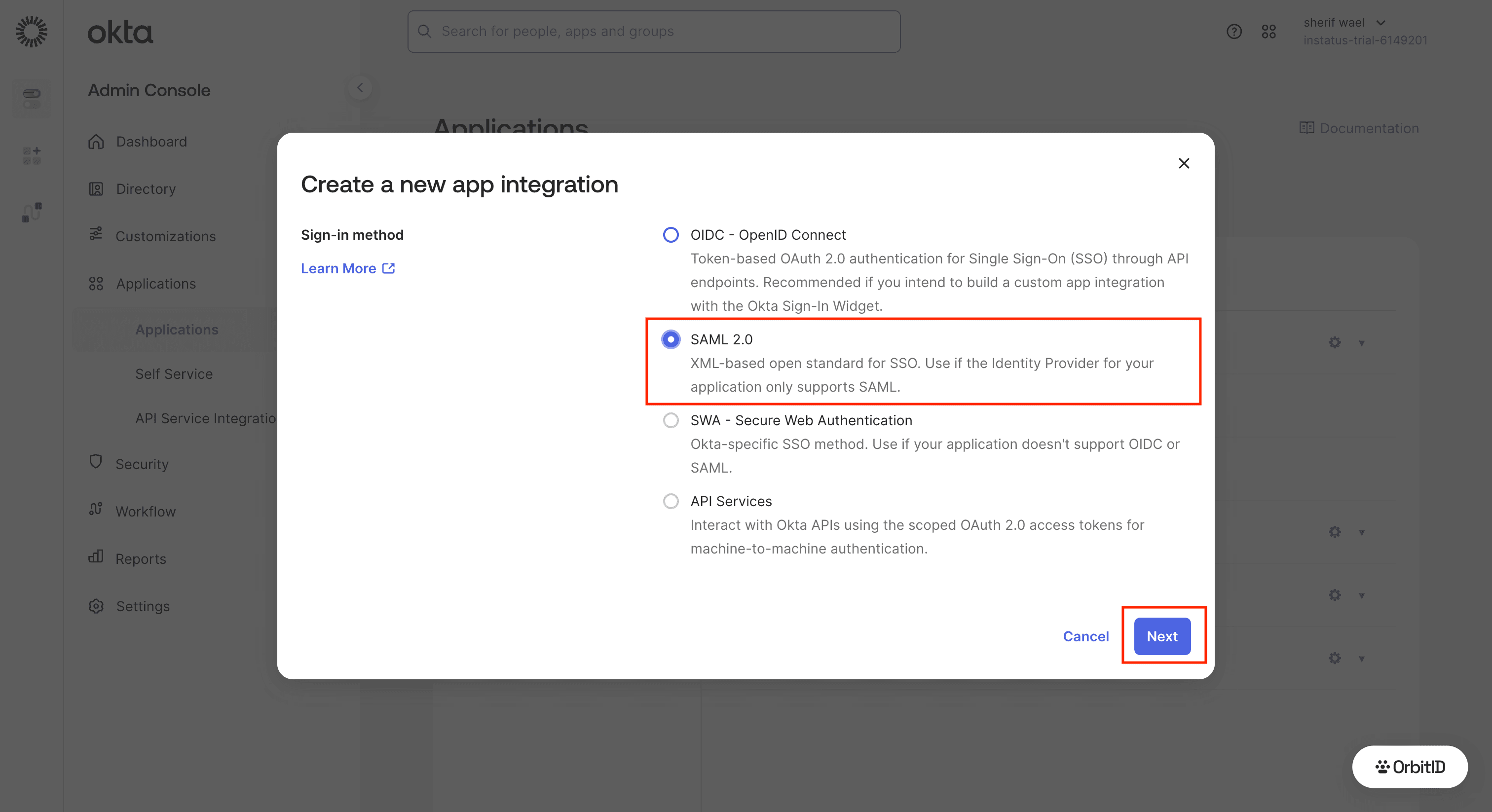

Create a new app integration dialog with SAML 2.0 selected

Give your application an App Name and click Next.

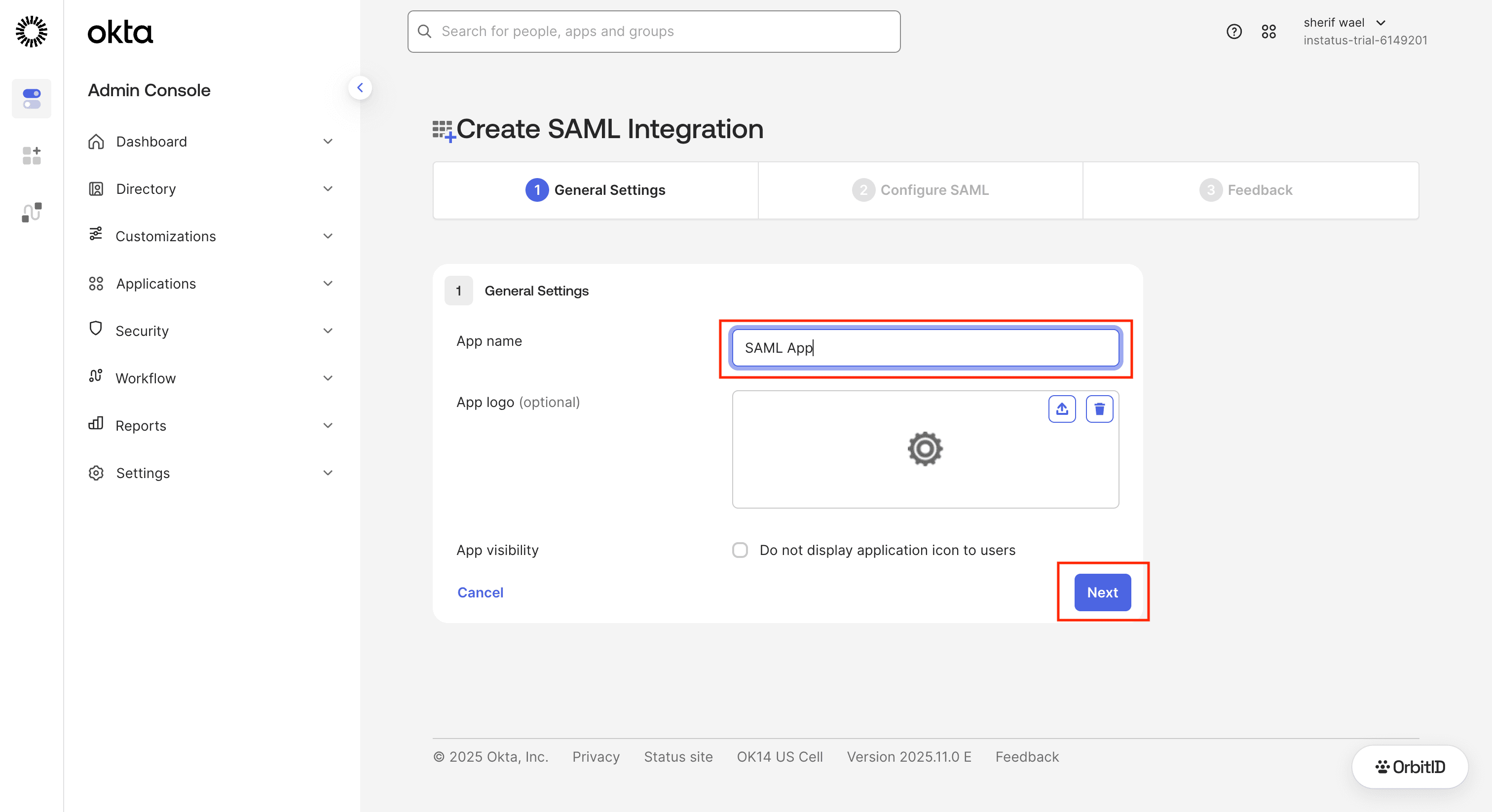

General settings step with the app name field

Step 2: Configure application

Enter the following values in the SAML Settings section on the next screen:

Single sign on URL: https://app.orbitid.com/api/oauth/saml; The ACS URL shown in your OrbitID Configuration page. Sandbox uses https://app.orbitid.com/api/oauth/sandbox/saml.
Audience URI (SP Entity ID): https://saml.orbitid.com; The SP Entity ID shown in your OrbitID Configuration page. Sandbox uses https://saml.orbitid.com/sandbox.

Select EmailAddress from the Name ID format dropdown.

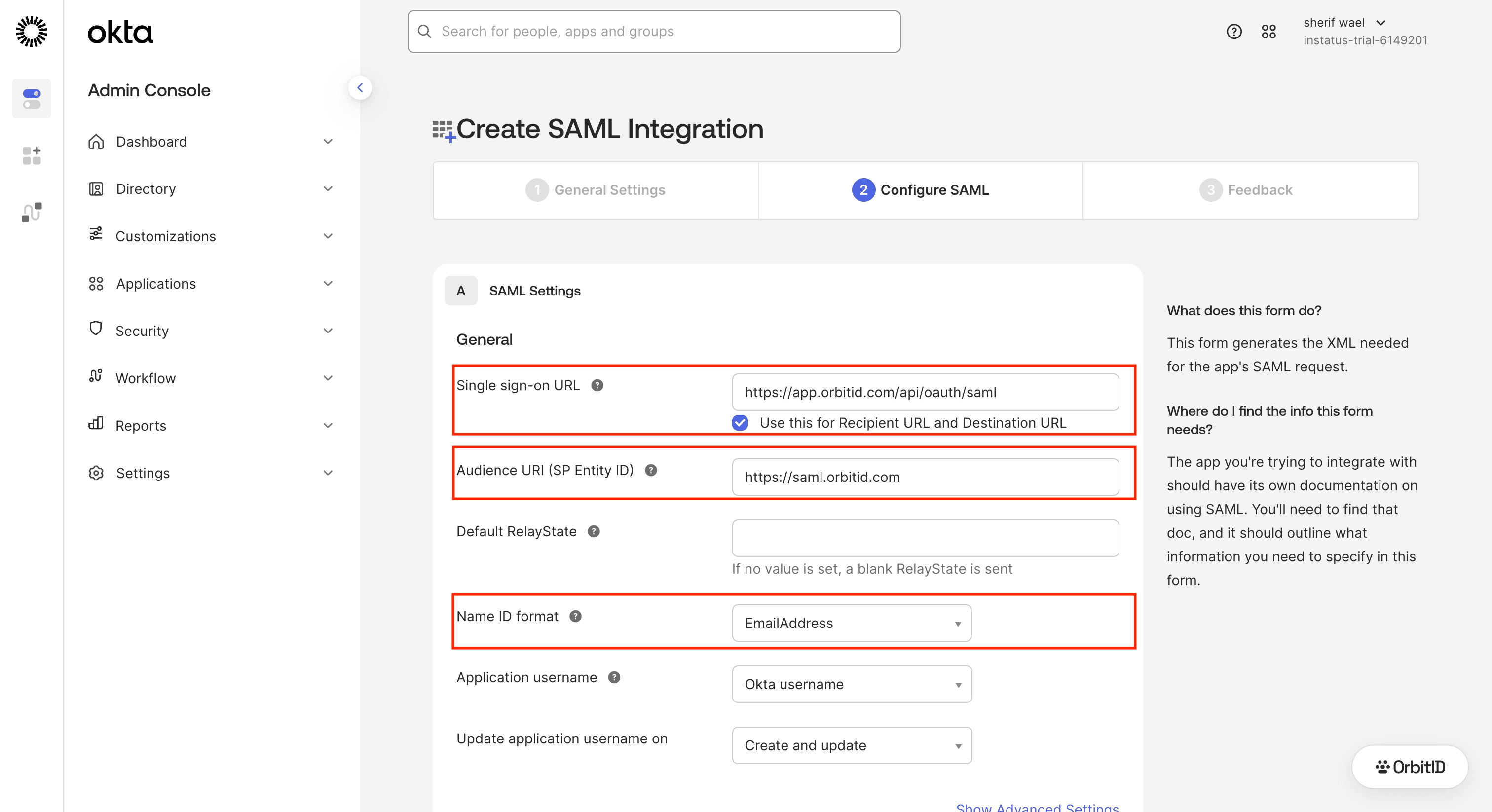

SAML settings with the single sign on URL, audience URI and Name ID format

Step 3: Attribute mapping

Under the Attribute Statements section, you have to configure the following attributes:

Name	Value
id	user.id
email	user.email
firstName	user.firstName
lastName	user.lastName

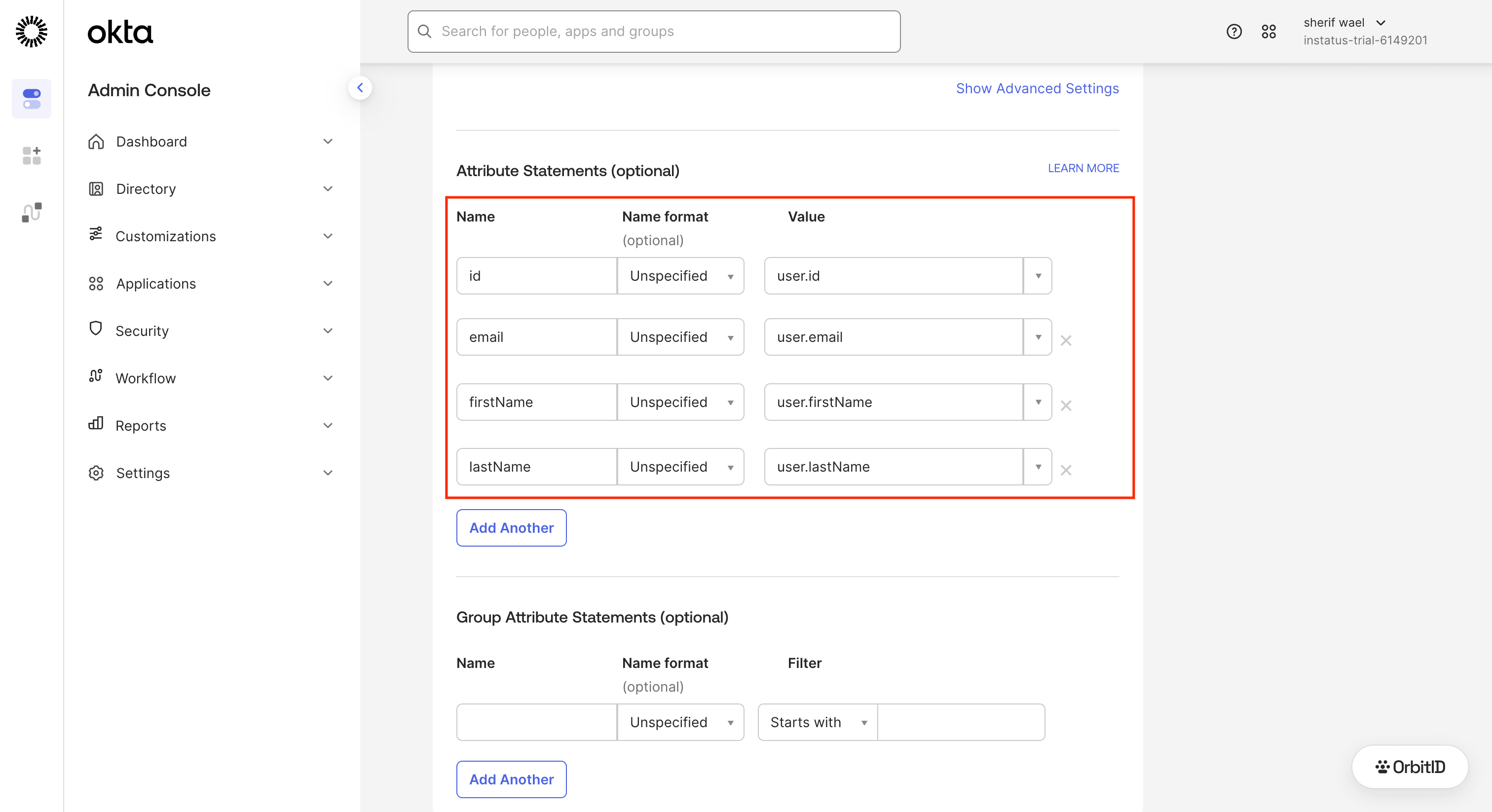

Attribute statements with id, email, firstName and lastName mapped

On the next screen select I'm an Okta customer adding an internal app and click Finish.

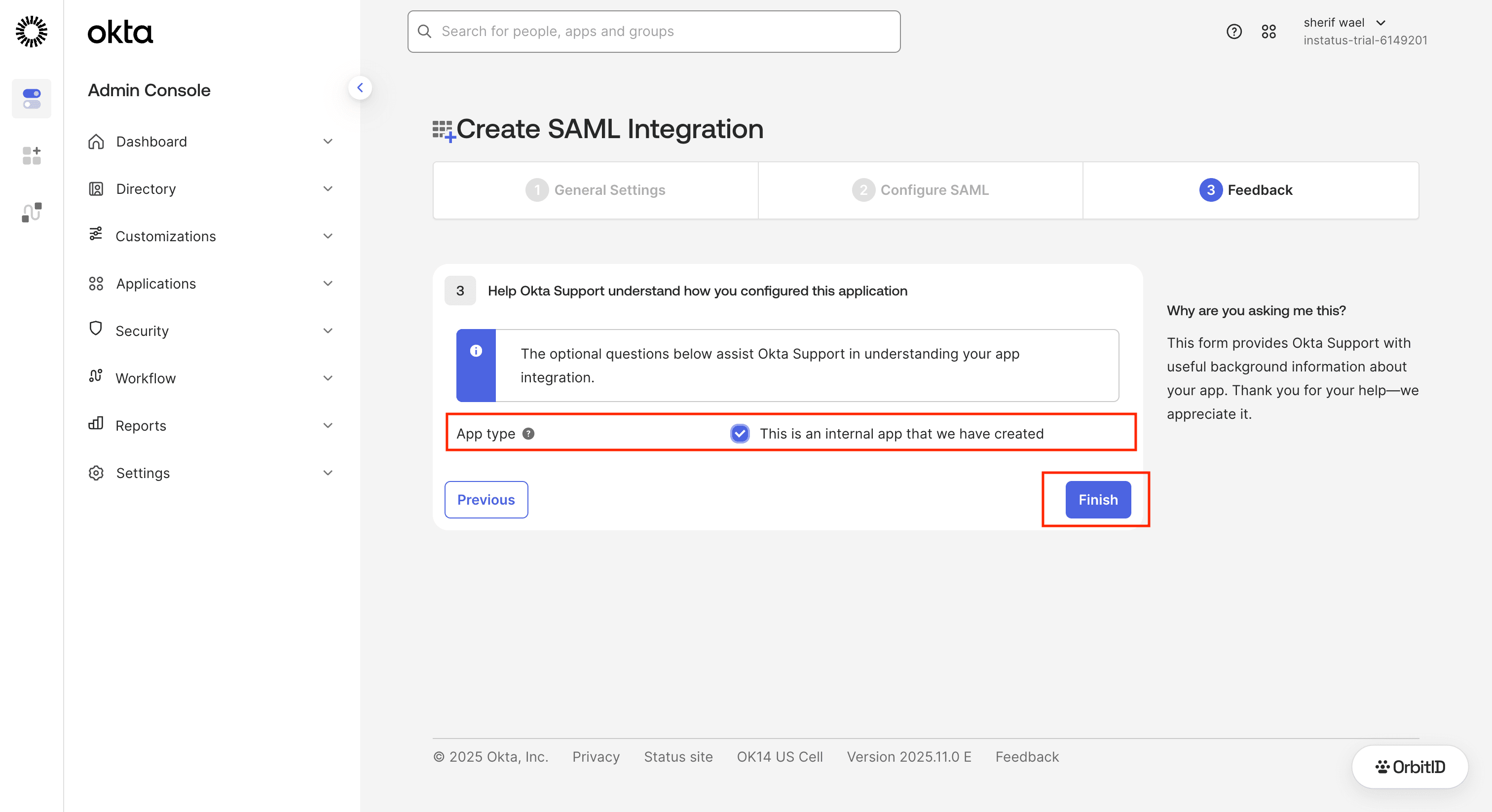

Feedback step with the internal app option selected

Step 4: Copy the IdP metadata

From your application, click the Sign On tab and go to the section SAML Signing Certificates.

Click the Actions dropdown for the correct certificate and click View IdP metadata.

A separate window will open with the metadata XML file. Copy the URL of that window (the metadata URL) or the XML itself to your clipboard.

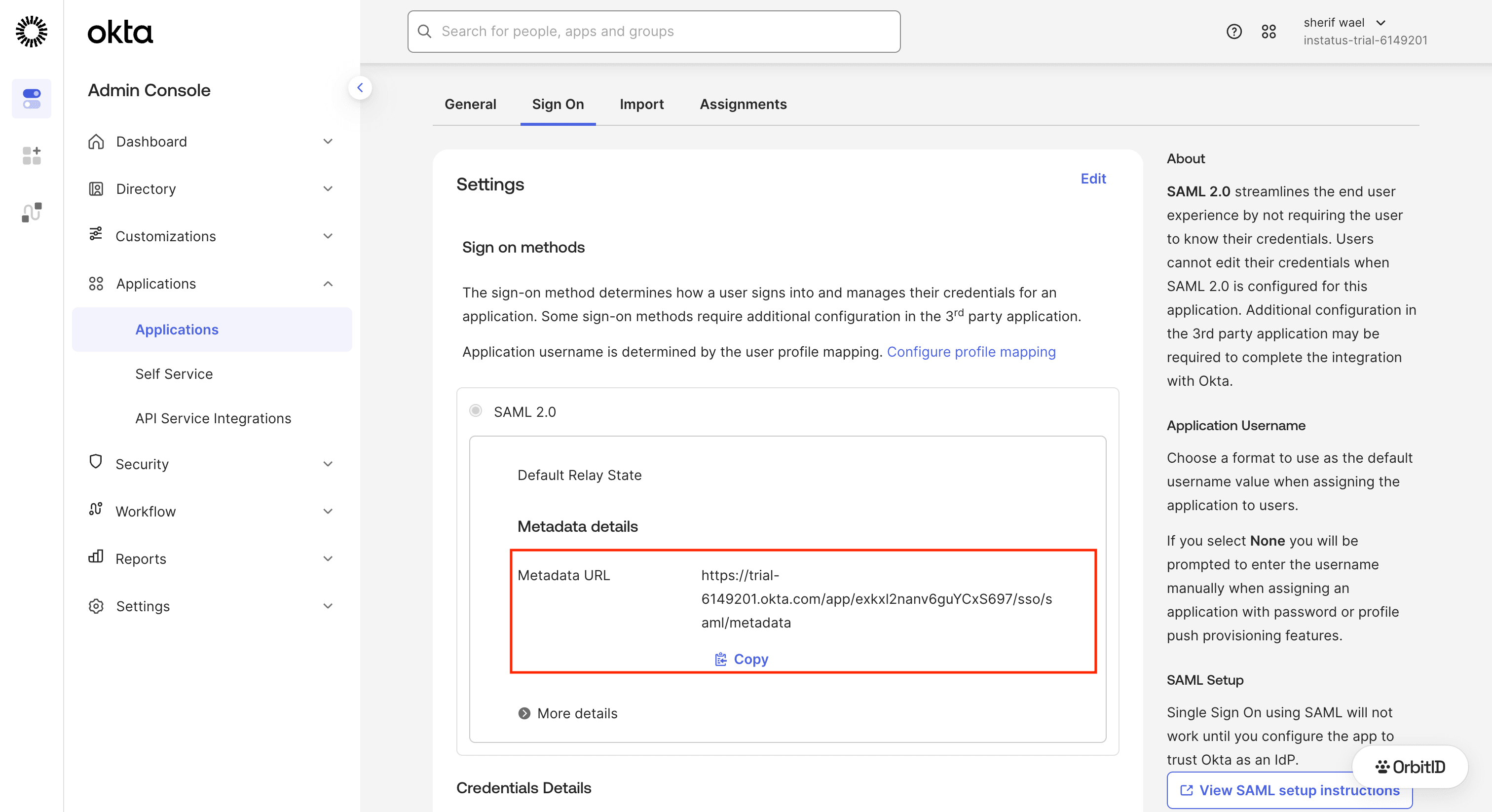

Sign On tab with the View IdP metadata action

Finish in OrbitID

Finish in OrbitID: paste the IdP metadata URL or XML into the connection form (or the Admin Portal link). In the dashboard, open the environment, go to Connections, click New connection, choose SAML and paste the metadata URL or the XML you downloaded. If your customer's admin is following an Admin Portal link, they paste it into the final step of the portal instead.

You can also create the connection with the API: POST /api/v1/sso as described in the quickstart.
